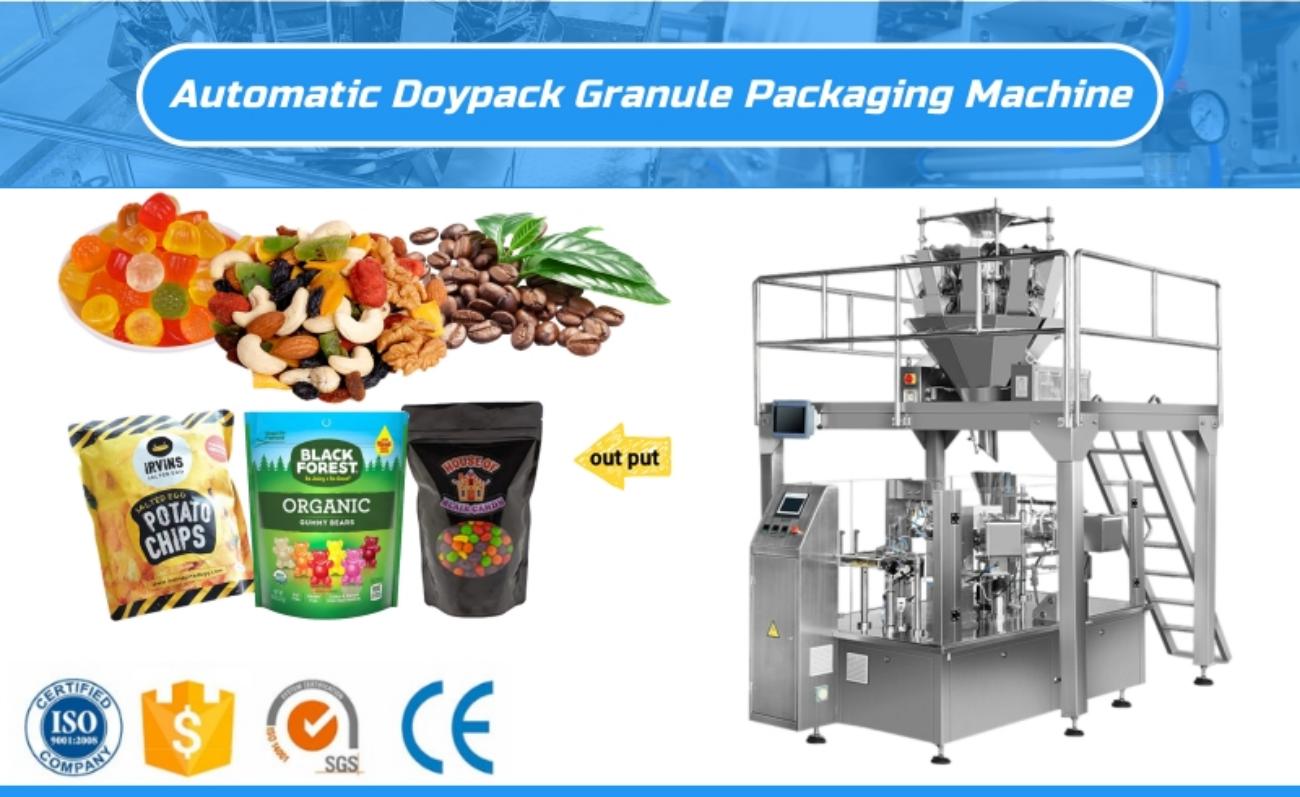

Granule Packing Machine Main Performance And Structure Features:
1. It uses stainless steel 304 shell for the food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. Horizontal Infeed conveyor suits for bags with zipper, max. put 300pcs each time.
4. Zipper Openner System: Servo motor (Yaskawa / Japan) controlled.
5. Independent temperature control system (Omron/Japan).
6. PLC adjusts bag width clamping: Only needs 2mins by auto PLC to adjust different bag width sizes.
7. Automatic lubrication system: PLC controls the lubrication time, and automatically lubricates the machine parts instead of manually.
8. It includes ribbon type date code: 3 lines * 17 characters.
9. Guarding: Glass Door Alarm / Air Pressure Abnormal
10. Internal grooved cam design: The technology with high precision, suits for max. packing
speed: 50 cycles/min with stable running.
11. Use a free oil vacuum pump, to avoid polluting the environment in the production.
| SPECIFICATIONS FOR PACKAGING MACHINE |
| Packing specification | Model | TT-200 | TT-250 |
| Bag width | 70-200 | 100-200 |
| Filling range | 10-1000g | 20-2500g |
| Main performance parameters | Packing speed | 40-60bag/min(speed is determined by the product filling quantity) |
| Average precision | ≤ ±1% |
| Total power | 4.5kw | 5kw |
| Dimensions | 1900mm X 1570mm X 1700mm(L*W*H) |
| Working flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
| 1. Code printer | 2. PLC control system | 3. Bag-opening device | 4. Vibration device |
| 5. Cylinder | 6. Electromagnetic valve | 7. Temperature controller | 8. Vacuum pump |
| 9. Inverter |
| 10. Output system |
|
