Product Description

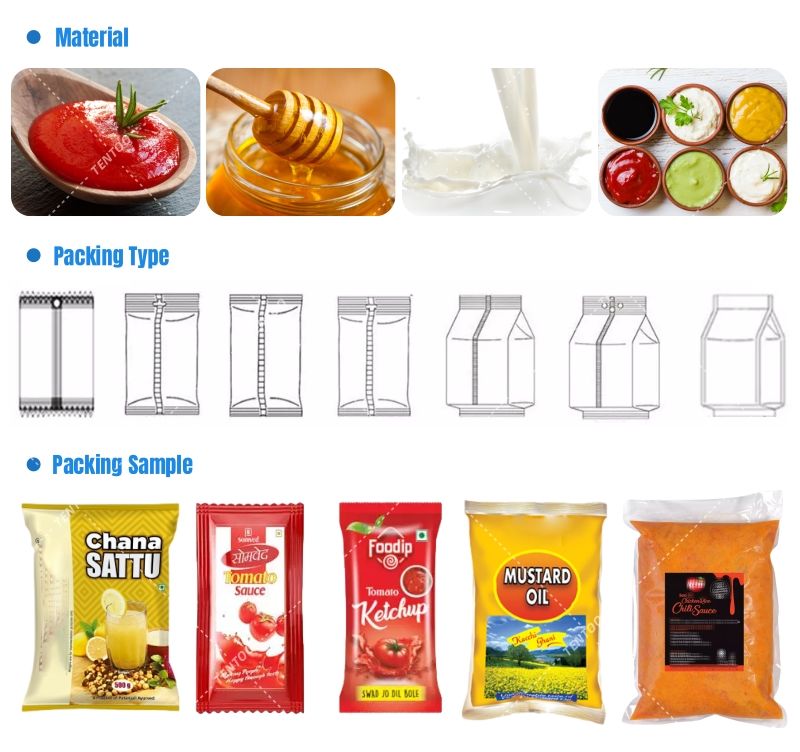

Product Application
1.TT-420A/520A/720A Vertical Granule packing machinery is our company introduction of foreign advanced technology, and is improved and the production of a kind of high quality,high performance automatic packaging machine, complete automatic feeding,measuring,bag-making,deviation,filling,sealing,date printing and finished product output and a series of automatic functions.
2.The machine adopts high precision servo film transport system, PLC program control, developed touchable human-machine interface of advanced automatic positioning, photoelectric tracking,digital temperature control,etc.
3.Operation is more simple,perfect.It is the first choice of food packaging industry to improve the production efficiency,reduce labor intensity, improve the grade of packaging equipment.
4.Packaging material can be PE/polyethylene,PE/aluminum plating, pet/PE, pp,and other heat-sealing packaging materials, etc.
5.It completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),product out-putting automatically.
6.High precision, high efficiency without crash the materials.
Main Machine Specification
|
Model | TT-420 | TT-520 | TT-720 |
Film width | max 420mm | max 520mm | max 720mm |
Bag length | max 300mm | max 400mm | max 500mm |
Bag width | 60-200mm | 80-250mm | 180-350mm |
Packaging Rate | 5-60bags/min | 5-60bags/min | 5-50bags/min |
| 150-1500ml | 2000ml | 4000ml |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 4KW |
Machine Size | (L)1217*(W)1015*(H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1780*(W)1350*(H)2050mm |
Machine Quality | About 650KG | About 680KG | About750KG |
Optional device | Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Airfilling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag |
